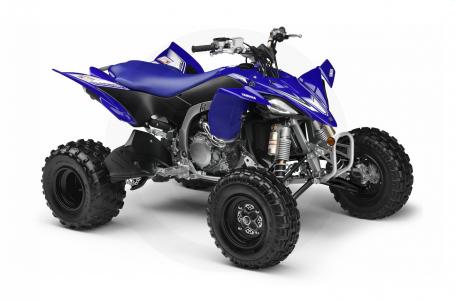

2010 Yamaha YFZ450R

Now until October 1, 2010
$2,500.00 Off MSRP

Request a Quote Financing Calculator Request a Brochure Financing Form

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

Designed to dominate the race track, the YFZ450R is sure to draw many checkered flags.


With a "wide-track" chassis and long travel suspension, the 450R provides incredible stability, confidence and control. The powerful 5-valve 449cc race engine is fuel injected with many components developed from our motocross bikes including the cylinder, cylinder head, cams and crank designs. .The engine is cradled by a hybrid aluminum chassis for optimized strength and rigidity, making the YFZ450R the most capable racer we've ever developed.


Fuel Injected 4-Stroke Engine: Dual Over Head Cam (DOHC) 449cc 4-stroke engine retains a 5-valve head for optimum high RPM power. Many of this engine's design elements have come directly from our race winning YZ motocross bikes, including the cylinder, cylinder head, cams and crank. Engine power and mid-range response are both improved over the carbureted YFZ and with Yamaha fuel injection, engine power is always optimized, regardless of altitude or temperature. Engine durability was improved over the old carb versions as well with beefed up crankcases, a large diameter big end crank bearing, stronger connecting rod and a smoother counter balancer.


Yamaha Fuel Injection: Yamaha Fuel Injection (YFI) uses a 12-hole injector that provides exceptional atomization of the fuel for maximum combustion efficiency and power delivery. The system also uses a big, 42mm Mikuni® throttle body and includes ISC (Idle Speed Control) for easy, reliable start-up and warming. YFI constantly monitors variables such as air temperature, intake pressure, engine temperature, throttle position and more, to ensure optimum fuel delivery. YFI automatically compensates for changes in temperature, elevation, and even barometric pressure. This means you don't have to fool with carburetor jetting, so you can focus on the ride.


Hybrid Aluminum & Steel Frame: The frame is designed of lightweight aluminum, with a tension-steel bottom frame that lets the engine sit lower for excellent mass centralization. The lower frame is made from strong high tensile steel, since that portion typically takes the majority of abuse from rocks and debris. This hybrid frame also incorporates a "Zero Weld" design for maximum strength.


Wide Track Chassis: For ultimate track handling and stability, the YFZ450R is 3-inches wider than the YFZ450 X. The front a-arms incorporate the "Wide Arc" design to greatly improve ground clearance, so obstacles are less likely to impact the lower a-arms. Upper and lower a-arm pivot points are positioned close together to reduce the pivot angle and improve suspension control.


High Tech Long Travel Suspension: The suspension geometry allows for long travel front shocks with 9.8" of front suspension travel. Piggy-back reservoir front shocks are robust with 44mm rods and a Kashima coating for reduced friction. In the rear there's a long cast aluminum swing-arm serving up 11" of travel from a long-travel fully-adjustable piggyback shock. All three shocks (front and rear) have high and low compression, rebound and threaded pre-load adjustments enabling you to tune the ride to the conditions.


Spacious and Comfortable Ergos: A wide-back seat provides the perfect balance between comfort and movement. It's narrow in the front for easy transitions from side to side, but wide in the back to help cushion the landings and rough corners. And even though the YFZ R has long suspension travel and a race oriented seat design, seat height remains at a low 31.9".


Racing Controls: ProTaper® handlebars are mounted on 4-way clamps for exceptional adjustability. There are two sets of holes in the handlebar crown, and eccentric clamps so the rider can choose the standard setting, 10mm or 20mm forward, or 10mm back. The thumb throttle is designed to minimize effort. The front flip-type parking brake is removable for racing. The front brake lever is adjustable and the clutch lever is adjustable on the fly.

    Engine Specifications
    • Engine: 4-Stroke Single, Liquid Cooled w/ Fan, Titanium 5-Valve DOHC
    • Displacement: 449cc
    • Bore and Stroke: 95mm x 63.4mm
    • Compression Ratio: 11.6:1
    • Carburetion: Yamaha Fuel Injection (YFI) , 42mm
    • Ignition: TCI (Digital)
    • Starting: Electric
    • Transmission: 5-Speed, Manual Clutch
    • Final Drive: 2WD; Sealed O-Ring Chain, Eccentric Adjustment
    Chassis Specifications
    • Suspension (Front): Independent Wide-Arc Double Wishbone, w/ 9.8" of travel. Kashima coated Piggy Back shocks featuring High/Low Speed Compression, Rebound and Threaded Preload Adjustment
    • Suspension (Rear): Cast Aluminum Swing Arm, w/ 11.0" of travel. Piggy Back shock featuring High/Low Speed Compression, Rebound and Threaded Preload Adjustment.
    • Brakes (Front): Dual Ventilated Hydraulic Disc , Twin Piston Calipers
    • Brakes (Rear): Wave Style Ventilated Hydraulic Disc, Twin Piston Caliper
    • Tires (Front): AT21x7-10 Dunlop KT351 Radial
    • Tires (Rear): AT20x10-9 Dunlop KT356 Radial
    Dimensions
    • Length: 1,795mm (70.7")
    • Width: 1,240mm (48.8")
    • Height: 1,065mm (41.9")
    • Wheelbase: 1,270mm (50.0")
    • Ground Clearance: 235mm (9.25")
    • Seat Height: 810mm (31.9")
    • Wet Weight: 184kg (405 lb)- ready to ride full of fuel and oil
    • Fuel Capacity: 10.0 L
    • Colour(s): Racing Blue, White/Red
    Additional Features
    • Cushioned Panels: Easily replaceable panels in high wear areas will provide flex and grip for aggressive riding.
    • Exclusive 20 in. Rear Tires: 20" rear tires offer extra ground clearance and the best all round performance for track and trail.
    • Super Wide Foot Pegs: 65mm wide foot pegs help ensure your feet have traction when you need it. They are 20mm wider and 12mm longer than the '09 carbureted YFZ.
    • LED tail light for improved visibility, longevity and reduced electric power consumption.
    • Wave rear brake rotor for less unsprung weight
    • The new throttle lever requires less effort, and it's very comfortable to use. That means less fatigue during all-day riding.
    • The instrumentation is all business. The discrete panel on the fender in front of the rider gives vital indicators about low fuel, coolant temperature, check engine, and neutral gear via a straightforward LED display.

    Specifications

    Engine
    Engine Type 4-Stroke Single, Titanium 5-Valve DOHC
    Displacement 449 cc
    Bore x Stroke 95mm x 63.4mm
    Engine Cooling Liquid-cooled with fan
    Starting System Ignition: TCI (Digital); Starting: Electric
    Chassis
    Front Suspension Independent Wide-Arc Double Wishbone, w/ 9.8" of travel. Kashima coated Piggy Back shocks featuring High/Low Speed Compression, Rebound and Threaded Preload Adjustment
    Front Travel 9.8 in.
    Front Brake Type Dual Ventilated Hydraulic Disc , Twin Piston Calipers
    Front Tires AT21x7-10 Dunlop KT351 Radial
    Rear Travel 11 in.
    Rear Suspension Cast Aluminum Swing Arm, w/ 11.0" of travel. Piggy Back shock featuring High/Low Speed Compression, Rebound and Threaded Preload Adjustment.
    Rear Brake Type Wave Style Ventilated Hydraulic Disc, Twin Piston Caliper
    Rear Tires AT20x10-9 Dunlop KT356 Radial
    Dimensions/Capacities
    Fuel Capacity 10.0 l (2.6 gal)
    Ground Clearance 235mm (9.25")
    Machine Dimensions (LxWxH) 1,795 mm (70.7 in.) x 1,240 mm (48.8 in.) x 1,065 mm (41.9 in.)
    Wheelbase 1,270 mm (50.0 in.)
    Drive Train
    Final Drive 2WD; Sealed O-Ring Chain, Eccentric Adjustment
    Transmission 5-Speed, Manual Clutch
    General
    Lighting Dual 30W Krypton multireflector Headlights and 3.9/0.5W LED Brake light
    Colors Racing Blue, White/Red
    Warranty 6 Month (Limited Factory Warranty)

    Compare Models

    Print








    Year 2010
    Manufacturer Yamaha
    Model YFZ450R
    Style Sport
    MSRP* $8,499.00
    Chassis
    Front Suspension Independent Wide-Arc Double Wishbone, w/ 9.8" of travel. Kashima coated Piggy Back shocks featuring High/Low Speed Compression, Rebound and Threaded Preload Adjustment
    Front Travel 9.8 in.
    Front Brake Type Dual Ventilated Hydraulic Disc , Twin Piston Calipers
    Front Tires AT21x7-10 Dunlop KT351 Radial
    Rear Suspension Cast Aluminum Swing Arm, w/ 11.0" of travel. Piggy Back shock featuring High/Low Speed Compression, Rebound and Threaded Preload Adjustment.
    Rear Travel 11 in.
    Rear Brake Type Wave Style Ventilated Hydraulic Disc, Twin Piston Caliper
    Rear Tires AT20x10-9 Dunlop KT356 Radial
    Frame
    Dimensions/Capacities
    Dry Weight
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 10.0 l (2.6 gal)
    Ground Clearance 235mm (9.25")
    Machine Dimensions (LxWxH) 1,795 mm (70.7 in.) x 1,240 mm (48.8 in.) x 1,065 mm (41.9 in.)
    Wheelbase 1,270 mm (50.0 in.)
    Drive Train
    Drive Train
    Final Drive 2WD; Sealed O-Ring Chain, Eccentric Adjustment
    Transmission 5-Speed, Manual Clutch
    Engine
    Engine Type 4-Stroke Single, Titanium 5-Valve DOHC
    Displacement 449 cc
    Bore x Stroke 95mm x 63.4mm
    Cylinders
    Engine Cooling Liquid-cooled with fan
    Fuel System
    Starting System Ignition: TCI (Digital); Starting: Electric
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting Dual 30W Krypton multireflector Headlights and 3.9/0.5W LED Brake light
    Colors Racing Blue, White/Red
    Warranty 6 Month (Limited Factory Warranty)
