$13,099.00

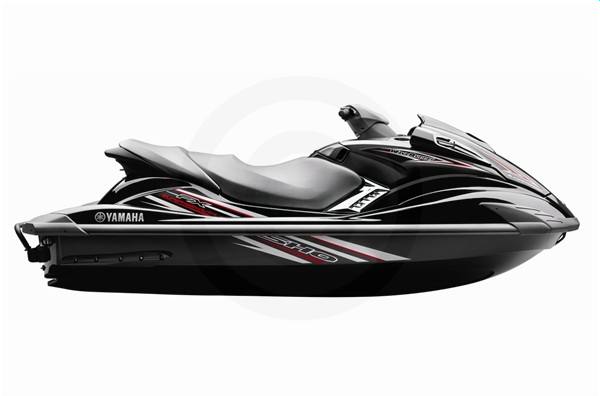

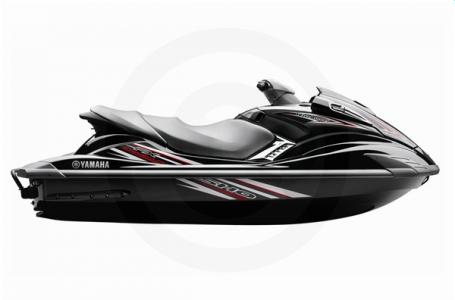

2010 Yamaha FX SHO
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Yamaha’s exclusive Cruise Assist is the industry’s first system that allows the driver to set and hold a particular engine speed while maintaining a comfortable riding position with the throttle. Once the speed is set, the driver can increase or decrease the speed through the simple push of a button. When the throttle is disengaged the system shuts off.
  • Yamaha’s exclusive No Wake Mode makes cruising through no-wake zones a breeze. Once engaged, the no-wake mode moves the engine’s RPMs to an optimal speed, approximately 5 mph, for efficiently navigating through a no-wake zone. Once through, the driver simply applies throttle and the no-wake mode is released.
  • Four-step Adjustable Tilt Steering System: Allows the rider to adjust the steering column angle from 55 degrees to 35 degrees.
  • Multi-function Electronic Information Center: Provides the operator a quick read on speed, RPM, fuel level, low fuel warning, low oil pressure warning, battery voltage, overheat warning, hour meter, check engine light with self-diagnostic function and the industry's only audible warning system.
  • Industry's First Remote Controlled Transmitter: With the touch of a button on Yamaha’s innovative remote controlled transmitter, you can activate and deactivate the FX SHO’s digital security system and Low RPM Mode from up to 30 feet away.
  • Low RPM Mode™: The personal watercraft industry’s first fuel saving feature, Low RPM can reduce fuel consumption by up to 26% based on average annual use.
  • Yamaha Security System: This security system that can be activated with the touch of a button ensures that no one starts the FX SHO without your permission.
  • 26 Gallons of Total Storage: Includes a large 19.8-gallon cooler, rear storage tub and glove box.
  • Extra Large Boarding Platform with Retractable Reboarding Step: Provides a stable area for reboarding.
  • Dual Mirrors: Automotive style and convenience.
  • Finger Throttle Lever: Provides added comfort while reducing hand fatigue.
  • Yamaha's Trademarked Visibility Spout®: A waterspout from the rear of the craft that improves the watercraft’s conspicuity.
The Jet Pump Propulsion System
  • The FX SHO’s 155mm hyper-flow jet pump propulsion system with three-blade stainless steel impeller is designed to maximize water flow for high performance. The FX SHO pump configuration provides excellent hook-up and smooth acceleration.
  • The industry’s only Reverse with Traction Control technology: Maintains the perfect RPM to provide the optimal speed for effectively maneuvering when the watercraft is in reverse.
  • Quick Shift Trim System (Q.S.T.S.): Mechanically operated, this system offers instant change in the attitude of the watercraft while underway allowing for tighter turns or quicker acceleration on plane, as the rider prefers. Q.S.T.S. offers 24 degrees of total trim range.
  • Stainless Steel Impeller Housing Liner: For high durability, the liner maintains accurate clearance tolerances between the impeller and the housing.
  • High Flow Intake Duct and Grate: The dynamic shape of these items directs water flow into the pump for better thrust, performance and hook up.
  • Pumps are Manufactured with YDC30: A combination of zinc and copper alloys, developed by Yamaha marine engineers, that offers excellent corrosion protection.
The NanoXcel Hull and Deck
  • The FX SHO features the world’s first hulls and decks manufactured through the use of cutting edge nanotechnology. Yamaha’s new NanoXcel ultra-lightweight, high strength material reduces the weight of the hull, deck and liner by 25% and provides performance gains in acceleration, fuel savings, top speed and handling. Additionally, the NanoXcel material offers a shinier, gem-like finish which reduces surface tension on the water, providing a more nimble, responsive ride.
  • Progressive, Stepper Draft V-Hull with Integrated Bow Spray Guard: Provides excellent maneuverability, handling and comfort.
  • Sponson Design: Provides added straight-line comfort and an improved two and three-up riding experience.
Specifications
  • Starting at: $13,099
  • Engine Type: Engine Type: 4-Cylinder, 4-Stroke, Supercharged, Intercooled
  • Bore/Stroke: 86 x 78mm
  • Displacement: 1812cc
  • Fuel: Regular Unleaded
  • Type of Exhaust: Wet
  • Type of Lubrication: Wet Sump
  • Cooling: Open-Looped, Water
  • Starting: Electric
  • Ignition: Direct Ignition
  • Compression Ratio: 8.6:1
  • Carburetor/Injection: Electronic Fuel Injection
  • Ignition Timing: 20° BTDC
  • Spark Plug: NGK LFR6A
  • Pump: 155mm Axial Flow
  • Transmission: Direct Drive from Engine
  • Impeller: 3-Blade, Stainless Steel
  • Length: 132.7 in (3.37m)
  • Width: 48.4 in (1.23m)
  • Height: 45.7 in (1.16m)
  • Seat Length: N/A
  • Dry Weight: 827 lb (376 kg)
  • Fuel Capacity: 18.5 gal (70 L)
  • Oil Capacity: 1.1 gal (4.2 L)
  • Vehicle Capacity: 3 person/ 529 lb (240 kg)
  • Storage Capacity: 26.4 gal (100 L)
  • Hull Material: NanoXcel
  • Warranty: 1 year limited warranty
  • Color: Eclipse Black; Crimson Red Metallic

Specifications

Engine
Engine Type 4-Cylinder, 4-Stroke, Supercharged, Intercooled
Displacement 1812cc
Bore and Stroke 86 x 78mm
Cooling Open-Looped, Water
Compression Ratio 8.6:1
Fuel System Electronic Fuel Injection
Ignition Direct Ignition
Starting Electric
Dimensions
Dry Weight 827 lbs. (376 kg)
Fuel Capacity 18.5 gal. (70 l)
Height 45.7 in. (1.16m)
Length 132.7 in. (3.37m)
Width 48.4 in. (1.23m)
Oil Capacity 1.1 gal. (4.2 l)
Rider Capacity 3 person/ 529 lbs. (240 kg)
Storage Capacity 26.4 gal. (100 l)
Drive Unit
Impeller 3-Blade, Stainless Steel
Pump 155mm Axial Flow
Transmission Direct Drive from Engine
General
Speedometer Electronic
Tachometer Electronic
Mirrors Dual Mirrors
Hull Type NanoXcel
Color Eclipse Black; Crimson Red Metallic
Warranty 1 year limited warranty
